Appraiser Variation (Reproducibility) Can two people using the same gage, measure the same part consistently? You want most of the variation to be between the parts, and less than 10% of the variation to be caused by the measurement system (the appraisers and the equipment.) Makes sense, doesn't it? If the appraiser can't get the same measurement twice, or two appraisers can't get the same measurement, then your measurement system becomes a key source of error. To Conduct a Gage R&R Study, You Will Need:. Five to ten parts that span the distance between the upper and lower spec limits. The parts should represent the actual or expected range of process variation. Number each part for the study but don't put them in any kind of order.
Rule of thumb: if you're measuring to 0.0001, the range of parts should be 10 times the resolution (e.g., 0.4995 to 0.5005). Note: If you do not have enough part variation, you cannot get a good GageR&R. Two to three appraisers (people who measure the parts). One measurement tool or gage. Software to perform the calculations, like the QI Macros.

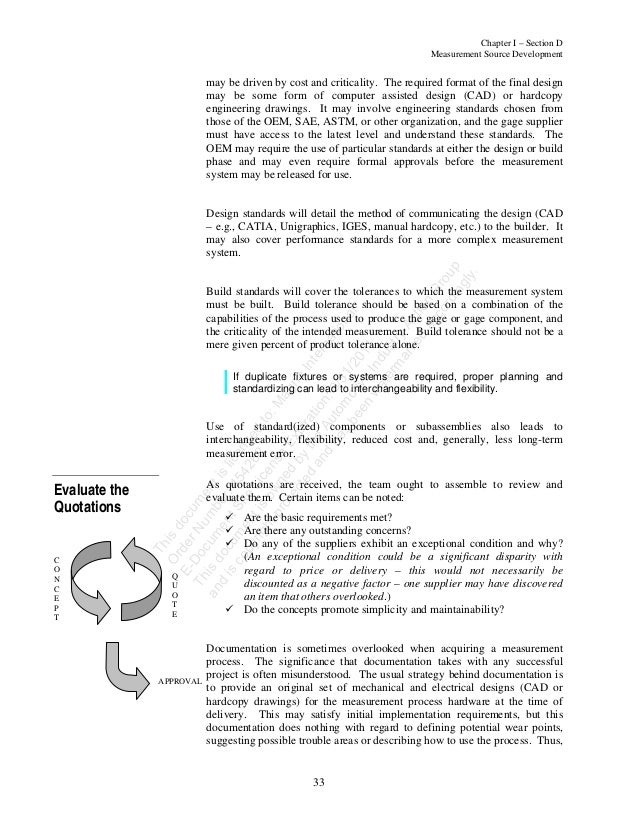

Aiag Msa Manual Pdf
Systems Analysis, Reference Manual. 4th ed., Michigan (USA) [2] ISO (2010) ISO/DIS 22514-7: Statistical methods in process management -- Capability and performance -- Part 7: Capability of measurement processes.
Close Taking the Measurements. Have each appraiser take a minimum of two measurement trials, on each part. Input the measurements into your software. Check the NDC Calculation - your software should calculate Number of Distinct Categories (NDC). NDC tells you how much variation you have in your sample parts. If NDC 30% - Gage system needs improvement (People and equipment cause over one-third of the variation) What To Look For. Equipment Variation -% EV (Repeatability) If repeatability (Equipment variation) is larger than reproducibility (appraiser variation), reasons include:.
Gage needs maintenance ( gages can get corroded). Gage needs to be redesigned to be used more accurately. Clamping of the part or gage, or where it's measured needs to be improved (imagine measuring a baseball bat at various places along the tapered contour; you'll get different results.). Excessive within-part variation (Imagine a steel rod that's bigger at one end than the other. If you measure different ends each time, you'll get widely varying results.). Appraiser Variation -% AV (Reproducibility) If reproducibility (appraiser variation) is larger than repeatability (equipment variation), reasons include:. Operators need to be better trained in a consistent method for using and reading the gage.
Measurement System Analysis Reference Manual Aiag
Calibrations on gage are unclear. Fixture required to help the operator use gage more consistently QI Macros Gage R&R template draws a line graph of appraiser performance, so you can easily tell if one person over reads or under reads the measurement. Data Examples. 0.66, 0.66 Common Mistakes People Make Many people call us because they don't like the answer they get using the Gage R&R template. Most of the time, it's because they didn't follow the instructions for conducting the study. Here are some of the common mistakes I've seen:.
Forgetting that the Gage R&R study is evaluating their measurement system and NOT their products. Gage R&R does not care about how good your products are. It only cares about how good you measure your products. Using only one part. If you only use one part, THERE CAN'T BE ANY PART VARIATION, so people and equipment are the ONLY source of variation. Using the one part measurement for all 10 parts (again, there won't be any part variation, so it all falls on the people and equipment). Using too many trials (if you use five trials, you have more opportunity for equipment variation).
Using too many appraisers (if you use all three, you have more opportunity for appraiser variation). Using fake data. Try using the AIAG SPC data the QI Macros loads on your computer at c: qimacros testdata.
Using a gage that measures in too much detail. If your part is 74mm +/- 0.05, then you don’t need a gage that measures to ten thousandths of an inch (0.0001) you only need one that measures to the hundredth of an inch (0.01). Using a measurement increment that is too large will throw away useful information. Using a measurement increment that is too small will add noise to your measurements. Challenges You Will Face One customer faced an unusual challenge: they were producing parts so precisely that there was little or no part variation even when measured down to 1/10,000th of an inch. Their existing gages ceased to detect any variation from part to part.
As your process improves and your product approaches the ideal target measurement, you'll have less part variation and more chance for your equipment or people to become the major source of variation. As your product and your process improve, your measurement system will need to improve as well. Conclusion Your goal is to minimize the amount of variation and error introduced by measurement, so that you can focus on part variation.
This, of course, leads you back into the other root causes of variation: process, machines, and materials. If you manufacture anything, measurement system analysis can help you improve the quality of your products, get more business from big customers, and baffle your competition. What is MSA Gage R&R Video Tutorial.
Measurement System Analysis (MSA) Purpose If measurements are used to guide decisions, then it follows logically that the more error there is in the measurements, the more error there will be in the decisions based on those measurements. The purpose of Measurement System Analysis is to qualify a measurement system for use by quantifying its accuracy, precision, and stability. An example from industry serves to illustrate the importance of measurement system quality: A manufacturer of building products was struggling to improve process yields, which had a significant impact on product cost. Experience indicated that there were several process and environmental characteristics that influenced the process yield. Data were collected on each of the variables believed to be significant, followed by regression and correlation analysis to quantify the relationships in statistical terms. The results showed no clear correlation between anything - in spite of years of anecdotal evidence to the contrary! In fact, the underlying strong correlation between variables was confounded by excessive error in the measurement system.
When the measurement systems were analyzed, many were found to exhibit error variation 2-3 times wider than the actual process spread. Measurements that were being used to control processes were often leading to adjustments that actually increased variation!
People were doing their best, making things worse. As you can see from this example, Measurement System Analysis is a critical first step that should precede any data-based decision making, including Statistical Process Control, Correlation and Regression Analysis, and Design of Experiments. The following discussion provides a broad overview of Measurement System Analysis, along with a. Characterization A measurement system can be characterized, or described, in five ways: Location (Average Measurement Value vs.
Actual Value):. Stability refers to the capacity of a measurement system to produce the same values over time when measuring the same sample. As with statistical process control charts, stability means the absence of 'Special Cause Variation', leaving only 'Common Cause Variation' (random variation). Bias, also referred to as Accuracy, is a measure of the distance between the average value of the measurements and the 'True' or 'Actual' value of the sample or part. See the illustration below for further explanation. Linearity is a measure of the consistency of Bias over the range of the measurement device. For example, if a bathroom scale is under by 1.0 pound when measuring a 150 pound person, but is off by 5.0 pounds when measuring a 200 pound person, the scale Bias is non-linear in the sense that the degree of Bias changes over the range of use.
Variation (Spread of Measurement Values - Precision):. Repeatability assesses whether the same appraiser can measure the same part/sample multiple times with the same measurement device and get the same value. Reproducibility assesses whether different appraisers can measure the same part/sample with the same measurement device and get the same value. The diagram below illustrates the difference between the terms 'Accuracy' and 'Precision': Efforts to improve measurement system quality are aimed at improving both accuracy and precision.
Figure 1: Requirements Following are general requirements of all capable measurement systems:. Statistical stability over time. Variability small compared to the process variability. Variability small compared to the specification limits (tolerance). The resolution, or discrimination of the measurement device must be small relative to the smaller of either the specification tolerance or the process spread (variation). As a rule of thumb, the measurement system should have resolution of at least 1/10th the smaller of either the specification tolerance or the process spread. If the resolution is not fine enough, process variability will not be recognized by the measurement system, thus blunting its effectiveness.
Measurement Systems Analysis Fundamentals. Determine the number of appraisers, number of sample parts, and the number of repeat readings. Larger numbers of parts and repeat readings give results with a higher confidence level, but the numbers should be balanced against the time, cost, and disruption involved. Use appraisers who normally perform the measurement and who are familiar with the equipment and procedures. Make sure there is a set, documented measurement procedure that is followed by all appraisers. Select the sample parts to represent the entire process spread.
This is a critical point. If the process spread is not fully represented, the degree of measurement error may be overstated. If applicable, mark the exact measurement location on each part to minimize the impact of within-part variation (e.g. Ensure that the measurement device has adequate discrimination/resolution, as discussed in the Requirements section. Parts should be numbered, and the measurements should be taken in random order so that the appraisers do not know the number assigned to each part or any previous measurement value for that part. A third party should record the measurements, the appraiser, the trial number, and the number for each part on a table. Stability Assessment.
Select a part from the middle of the process spread and determine its reference value relative to a traceable standard. If a traceable standard is not available, measure the part ten times in a controlled environment and average the values to determine the Reference Value. This part/sample will be designated as the Master Sample. Over at least twenty periods (days/weeks), measure the master sample 3 to 5 times. Keep the number of repeats fixed. Take readings throughout the period to capture the natural environmental variation. Plot the data on an x̄ & R chart - consult the Statistical Process Control section of the Toolbox and calculate control limits.
Evaluate the control chart for statistical control. Again, consult the Statistical Process Control section of the Toolbox for assistance with this assessment. Bias Assessment. Subtract the reference value from x̄ to yield the Bias: Bias = x̄ - Reference Value Process Variation = 6 Standard Deviations (Sigma). Calculate the Bias percentage: Bias Percentage = Bias / Process Variation. Analyze the results.
If there is a relatively high value, examine the following potential root causes:. Appraisers not following the measurement procedure. An error in measuring the Reference Value. Instability in the measurement. If the SPC chart shows a trend, the measurement device could be wearing or calibration could be drifting. Repeatability and Reproducibility Assessment (Gage R&R): This discussion refers to the data collection sheet sample that follows as Figure 2. You can download the data collection and analysis spreadsheet at the end of this section.
Follow the steps below to conduct a Gage R&R study:. Determine the number of appraisers, trials, and parts, which may vary from study to study. A rule of thumb is 2-3 appraisers, 2-3 trials, and 5-10 parts - with 10 being greatly preferred.
The downloadable MoreSteam.com spreadsheet will accommodate any combination within this range. In this example we will use 2 appraisers, 3 trials, and 10 parts. Identify three appraisers who are all trained in the proper measurement procedure and identify them as A, B & C. Fill in the yellow blanks at the top of the form with the required background information (Gage Type, Date, etc.). Also fill in the blank at the bottom of the form asking for the total specification tolerance. Collect ten parts that represents the range of process variation.
If the parts don't vary as much as the process, the gage error will be overstated. Identify each part with a number 1-10 in such a way that the appraisers can not see the numbers as they take the measurements. Please refer to the data collection chart below.
You will see that appraiser A's three trials are recorded in rows A-1, A-2, and A-3. Likewise, Appraiser B has rows B-1, B-2, and B-3, and Appraiser C has rows C-1, C-2, and C-3. Start with Appraiser A and measure each of the ten parts in random order.
A third party should record the results of the first trial in row A-1. Proceed to Appraisers B & C following the same process. Then repeat the process for trials two and three. The analysis of measurement error is output in the green-shaded boxes on page 2 of the spreadsheet, which is shown below:. Variation from the measurement device, or Repeatability, equals 25.98% of the total part variation, and 28% of the specification tolerance.
Variation from the appraisers, or Reproducibility, is equal to 6.02% of the total part variation, and 7% of the specification tolerance. Total variation from Repeatability and Reproducibility combined (they are not directly additive) is 26.67% of the total variation, and 29% of the specification tolerance. The rule of thumb for acceptance of a measurement system is a total Gage R&R of 30% or less of the lessor of Total Variation or the Specification Tolerance. In this case, the measurement system is capable, and can be used as a basis of decision making.
If the measurement system has error in excess of 30%, the first step to improve results is to analyze the breakdown of the error source. If the largest contributor to error is Repeatability, then the equipment must be improved. Likewise, if Reproducibility is the largest source of error, appraiser training and adherence to procedures can yield improvement.
You can download a functional version of the MoreSteam Hint: If the measurement system is not capable (error above 30%), error can be normalized by taking multiple measurements and averaging the results. This can be time consuming and expensive, but it can be used to provide reliable measurement data while the measurement system process is being improved. Further Analysis There are other methods that can be used to evaluate measurement systems. Most statistical software packages, including Minitab, support ANOVA methods.
You can of several software packages through the Toolbox. For additional information on Measurement System Analysis, consult the following:. An excellent statistics handbook is available free online from a partnership of SEMATECH and NIST (National Institute of Standards and Technology - U.S.
Commerce Department) at. You can purchase an excellent guide to Measurement System Analysis (MSA) for a nominal charge from the under the publications/quality section of their Web site, or by calling (248) 358-3570. The AIAG also offers publications on other topics:.
QS-9000. Advanced Product Quality Planning (APQP).
Failure Mode and Effects Analysis (FMEA). Statistical Process Control (SPC). Juran's Quality Handbook (Juran's Quality Handbook, 5th Ed) by Joseph M. Juran (Editor), A. Avaya cms supervisor r16 user guide.
Blanton Godfrey (Editor), A. Blanford Godfrey ISBN: 007034003X Summary Measurement Systems Analysis is a key step to any process improvement effort.
By understanding existing measurement systems a team can better understand the data provided by those systems and make better business decisions. Need a tool for MSA?, MoreSteam's convenient, new Web-based statistical tool, and start today. Want to learn more? MoreSteam.com offers a wide range of Lean Six Sigma online courses, including Black Belt, Green Belt, and DFSS training. Flexible training at an affordable price.
